THEORY

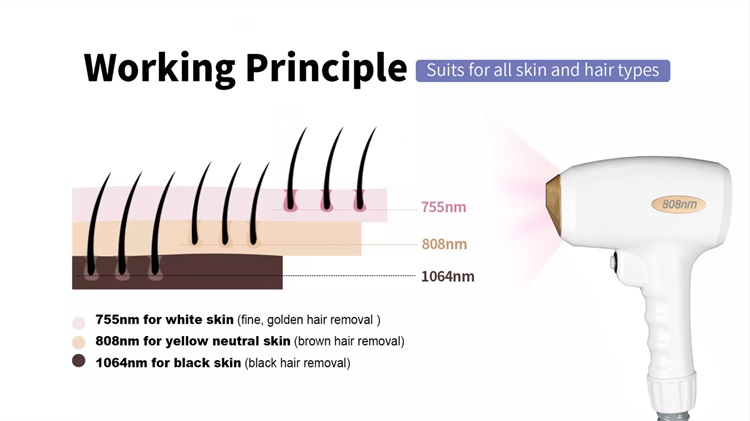

808 diode laser hair removal uses a unique 808nm wavelength red light. Laser of this wavelength can effectively penetrate the skin and reach the depth of the target tissue . According to the principle of selective photothermal action of melanin, the pulse duration can ensure that the target tissue absorbs enough energy and damage the target tissue in the form of heat energy through energy conversion.
Proper energy density can ensure that the target tissue is damaged by sufficient thermal damage in the appropriate pulse duration, and the surrounding tissues do not contain melanin and absorb energy, there is no thermal energy conversion, and it is almost immune to thermal damage, thus ensuring treatment Security.

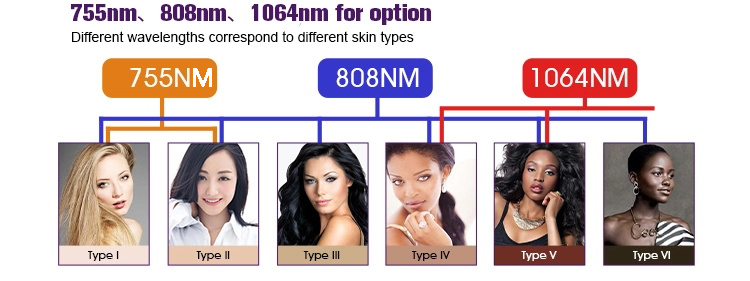

There are a variety of laser powers for you to choose, 808nm wavelength laser, or 755nm 808nm1064nm three-in-one laser
ADVANTAGE
Safe：Self-check automatic protection mechanism：dual protection of water flow alarm + temperature alarm, leakage protection switch, protect the machine while protecting the safety of users，has passed the European Union CE certification, and quality testing.
Wide application range:The 808nm diode laser for hair removal and firming/rejuvenation uses the most advanced technology and is suitable for all types of skin.
Effective: The powerful power supply stabilizes the power output. The laser imported from Germany has high power output and stable energy every time. It is expected to get an excellent treatment effect in the first treatment, and it is suitable for all types of hair
Safe and painless: We use the TEC cooling system in the water tank and the sapphire TEC in the handle head,so you can use machine for 24 hours work. The cooling system of the sapphire handle is 0°C-4°C, so the treatment is always comfortable. There is almost no skin spread, no damage to the skin and sweat glands, no scars, no side effects

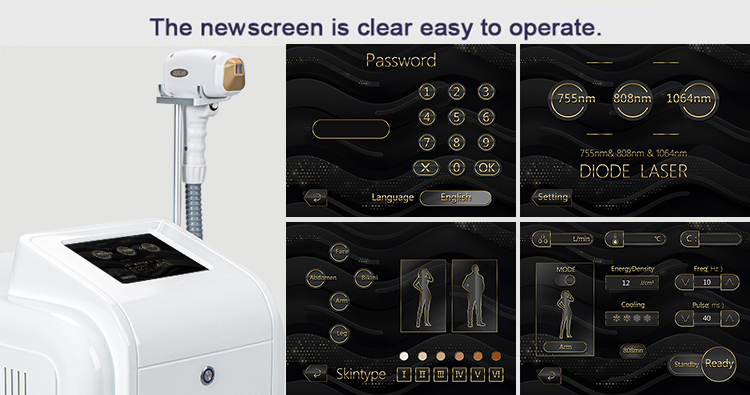

Easy-to-operate interface: Provide users with automatic intelligent mode design. We set different presets for different parts of the body, gender and skin type, so even new users can easily operate the machine.
Details Images

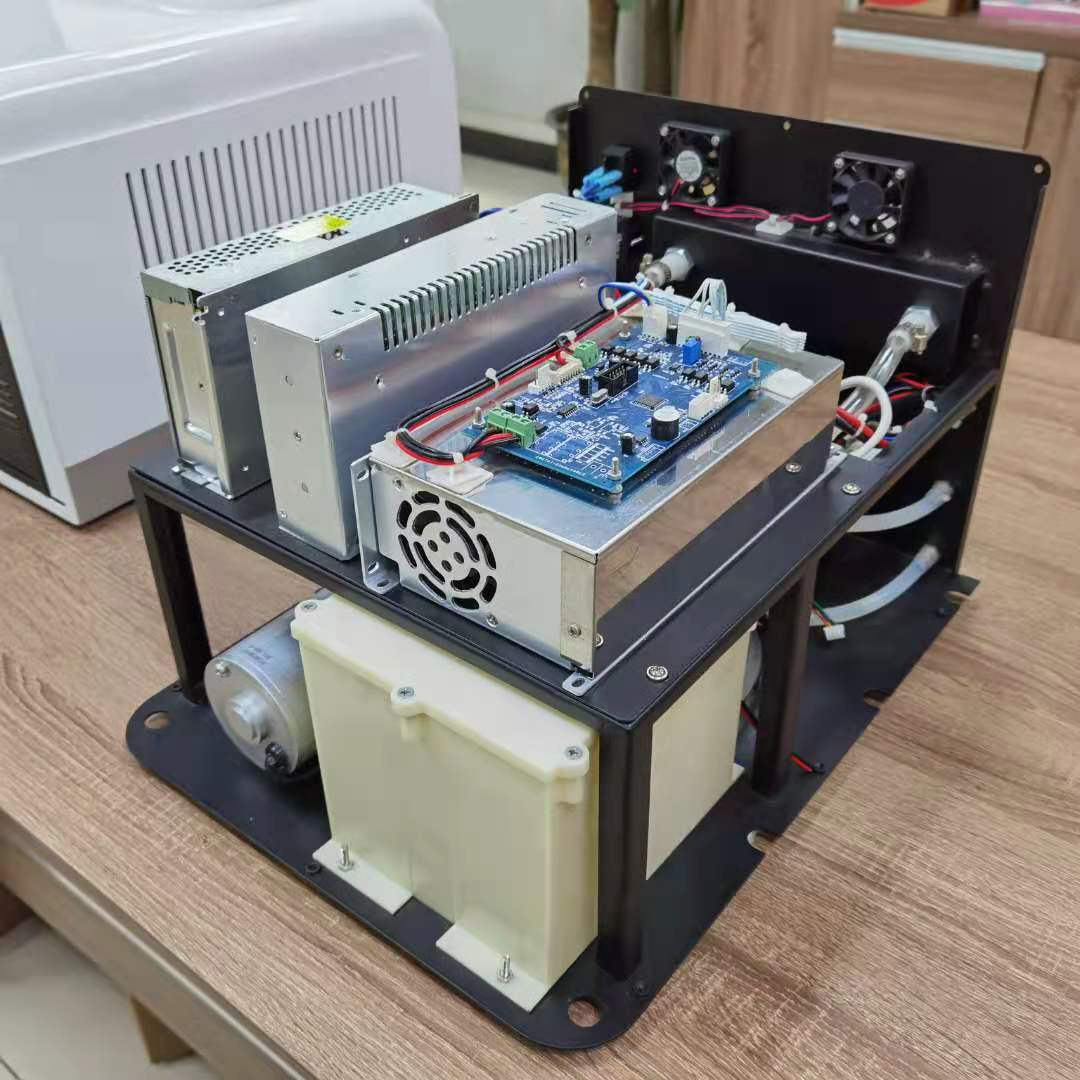

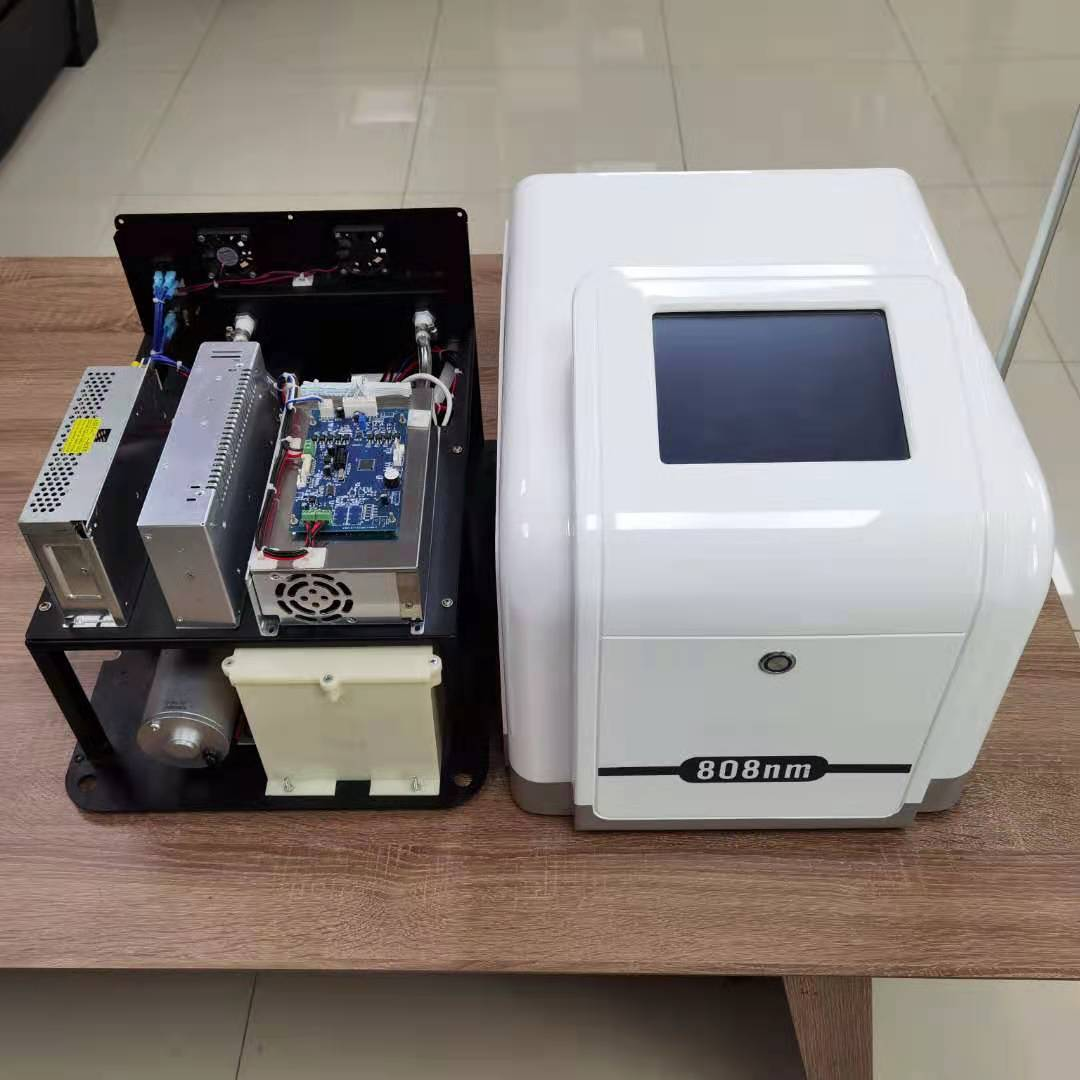

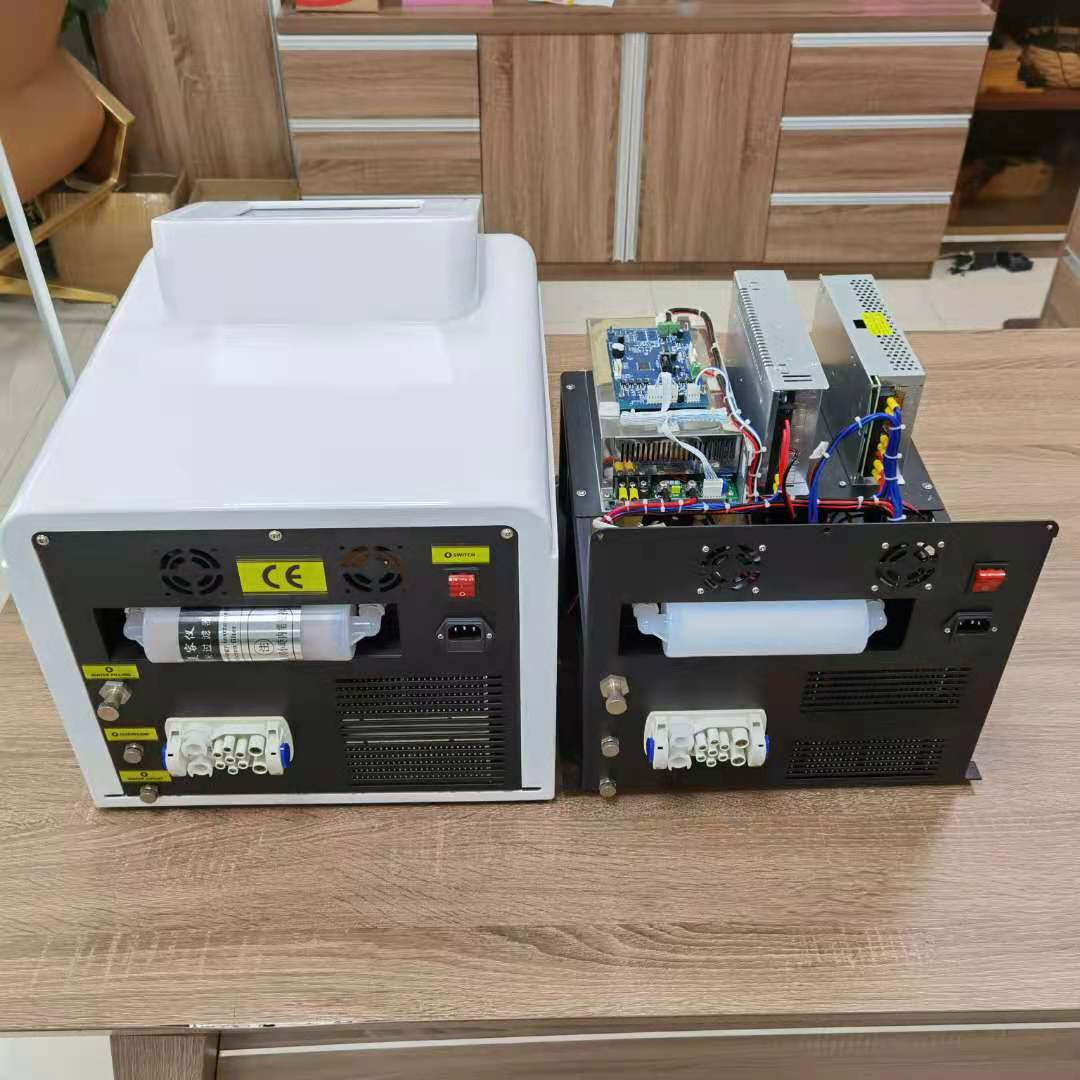

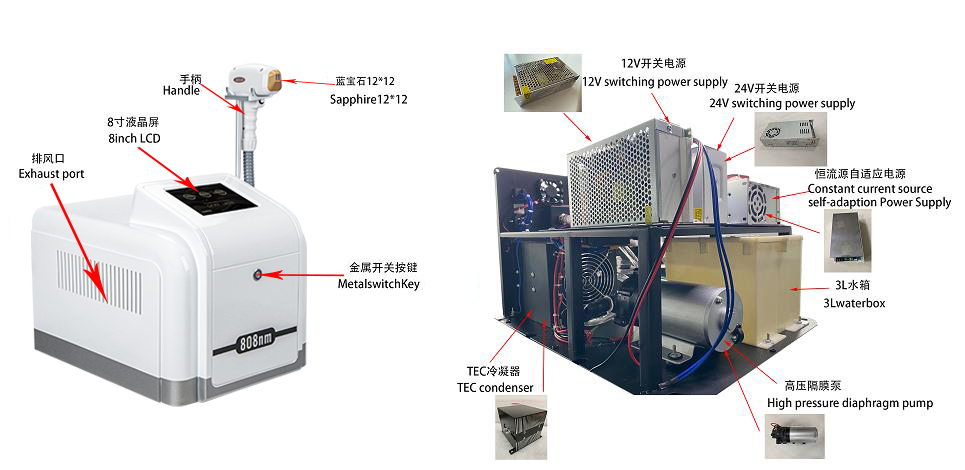

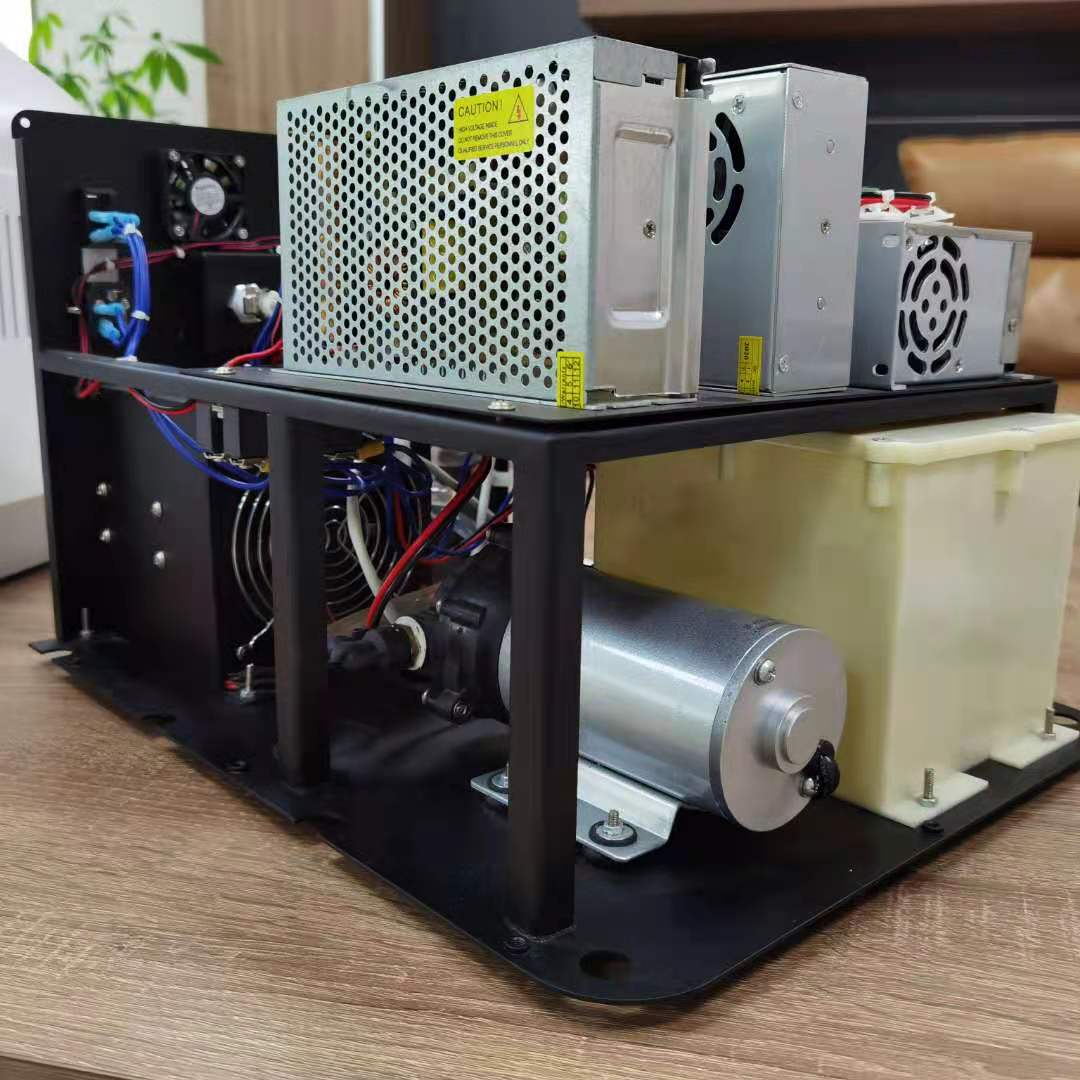

Product internal structure
We provide product customization and OEM services: logo, machine color, language, operating system, screen interface.

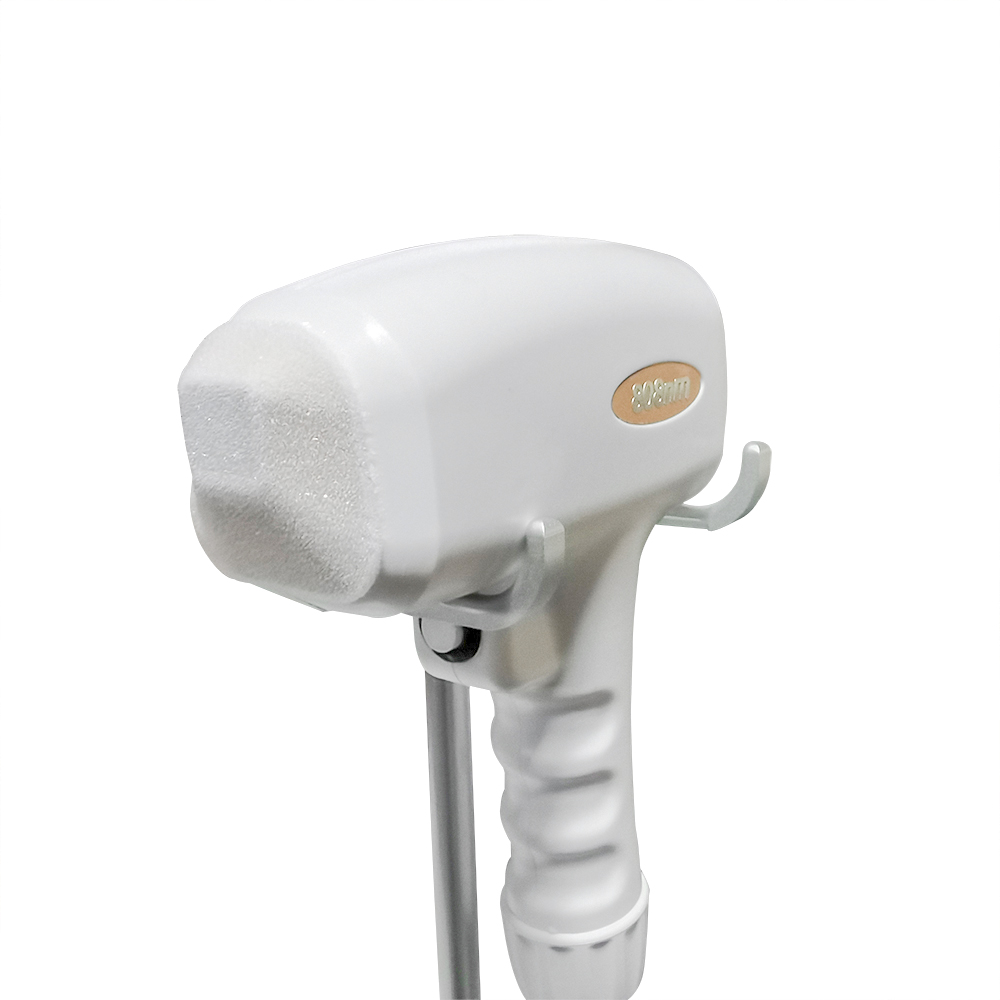

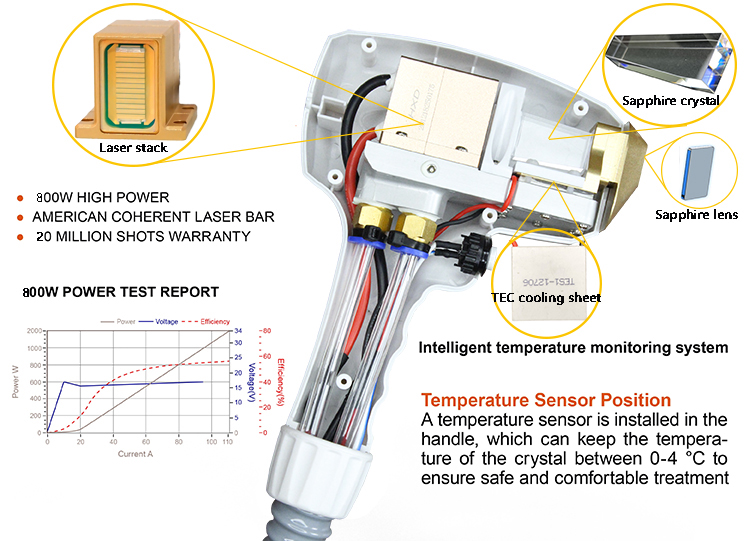

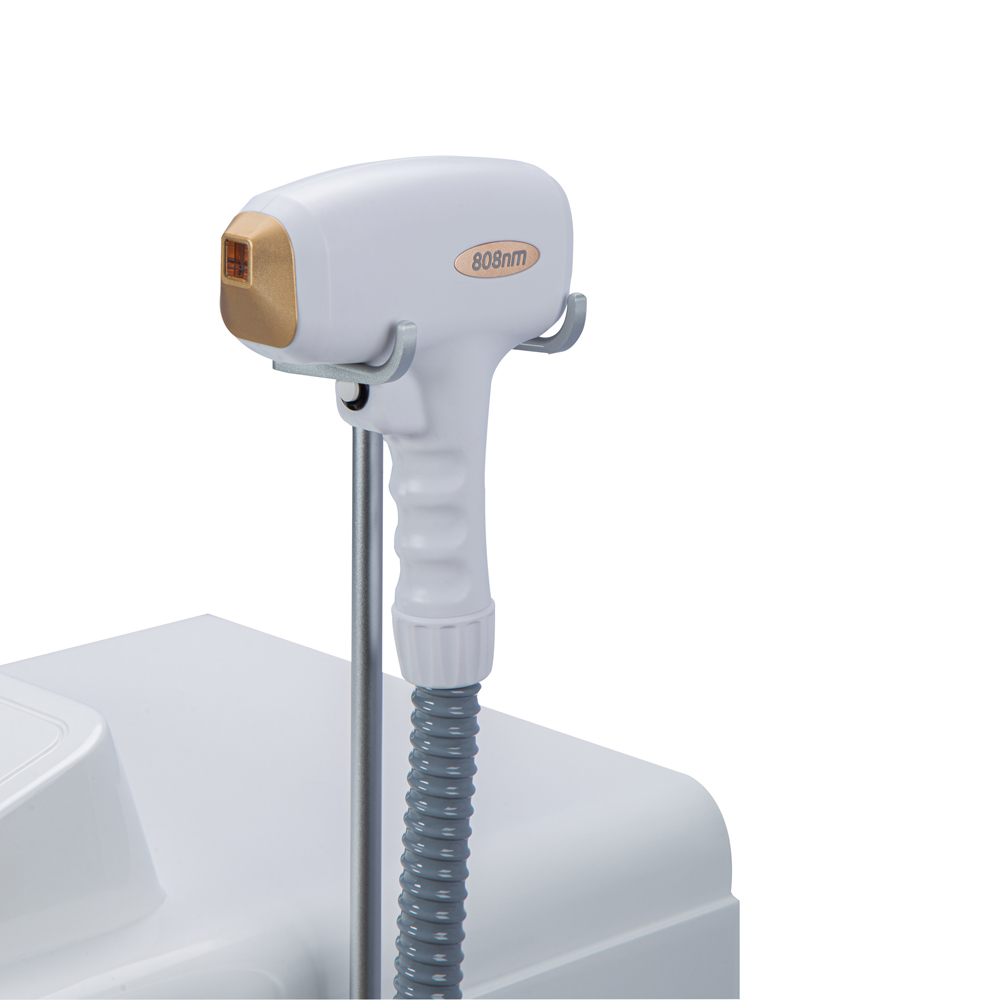

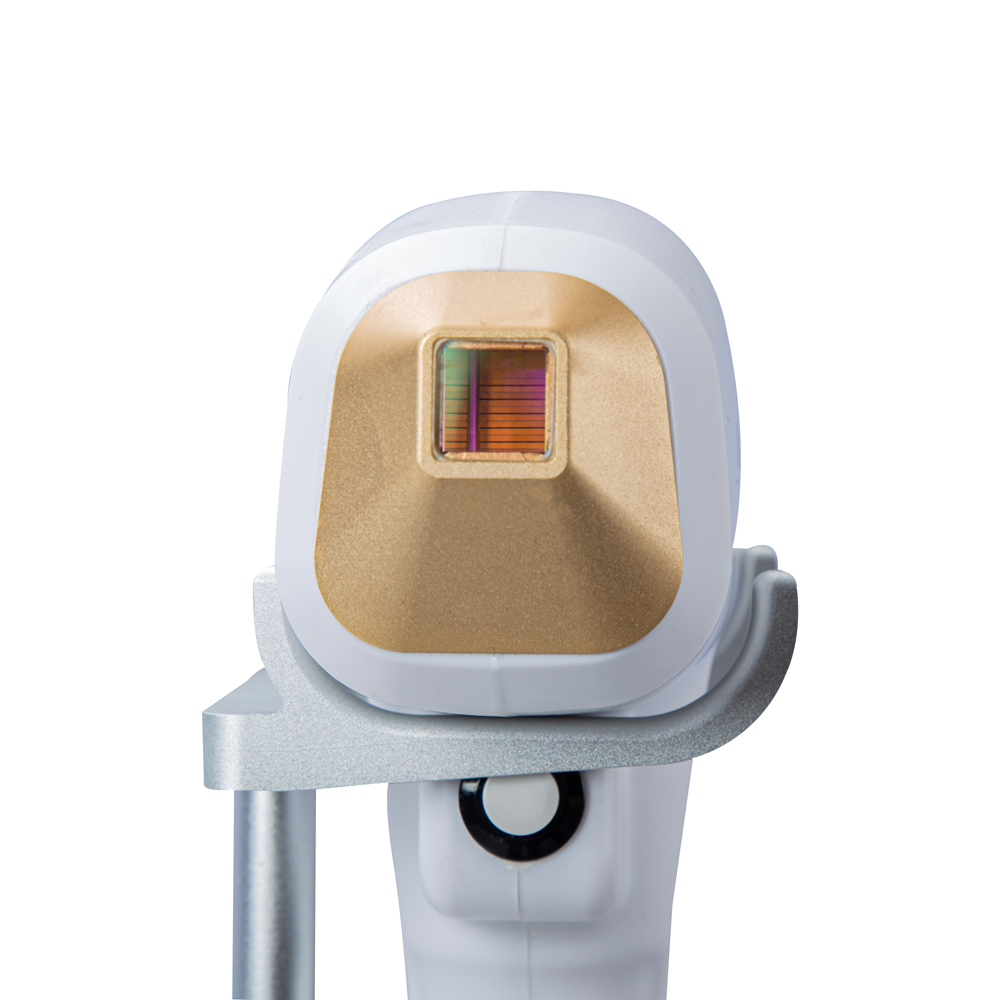

Hair removal handle The head of the handle is cooled by sapphire crystal, and the treatment is painless. The bionic design of the handle prevents you from feeling tired when using it. Crystal size and output power can be customized according to customer needs
|

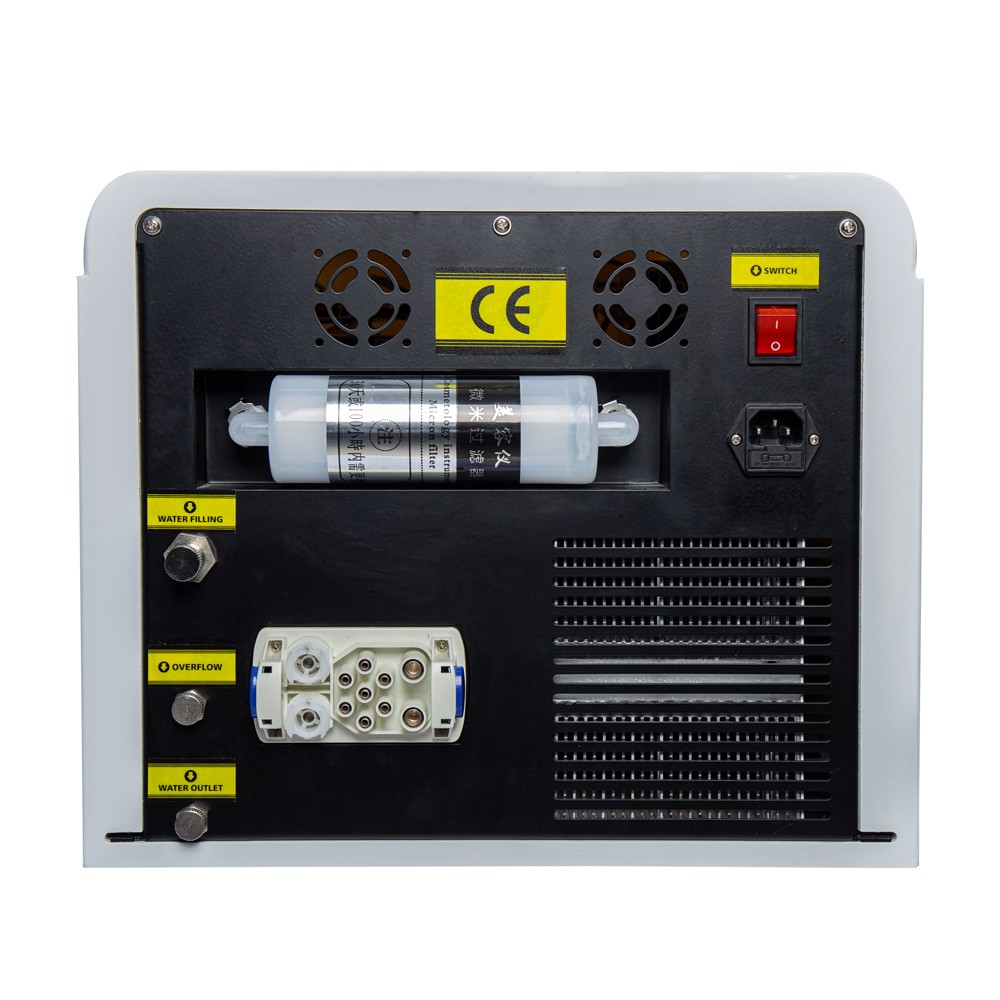

Machine back There are water injection hole, overflow hole, drain hole, plug, power switch, power supply, micron filter on the back
|

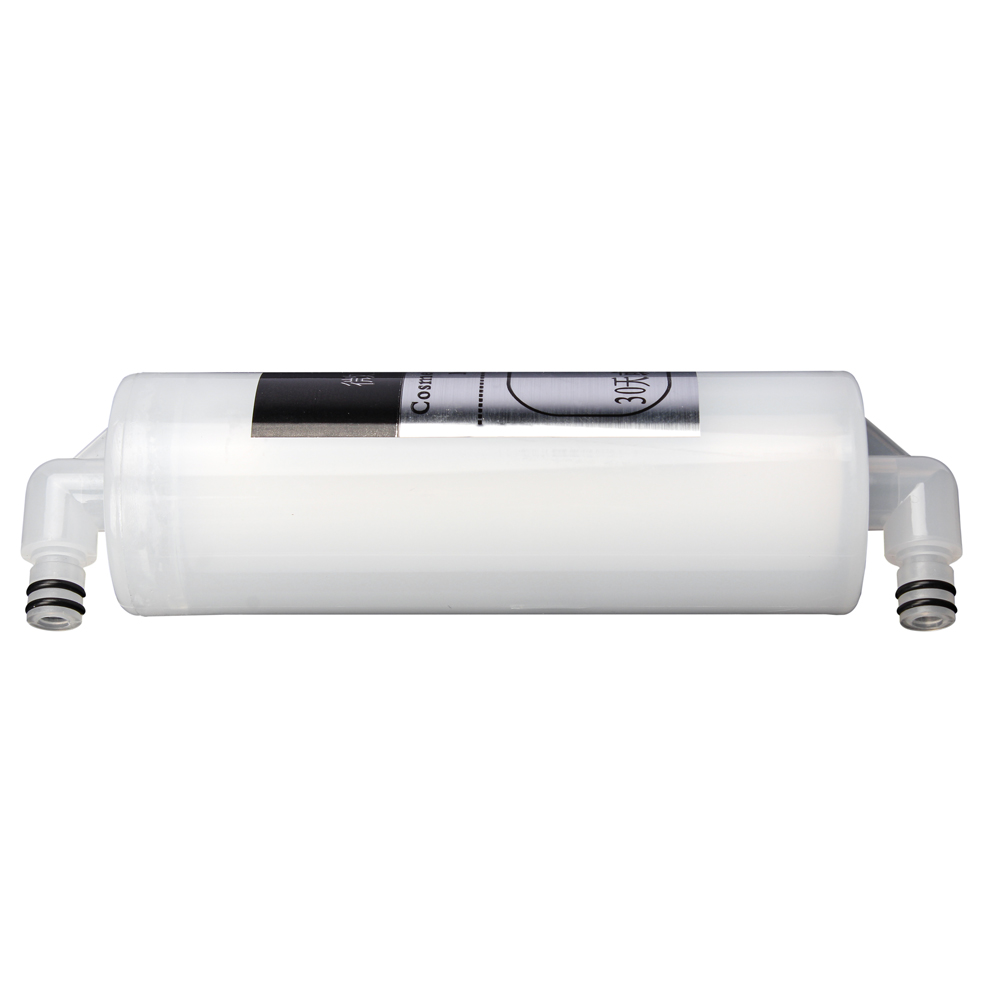

Easy to replace micron filter Due to the high water quality requirements of the diode stack the filter can ensure the purity of the water flow, thereby extending the service life of the machine
|

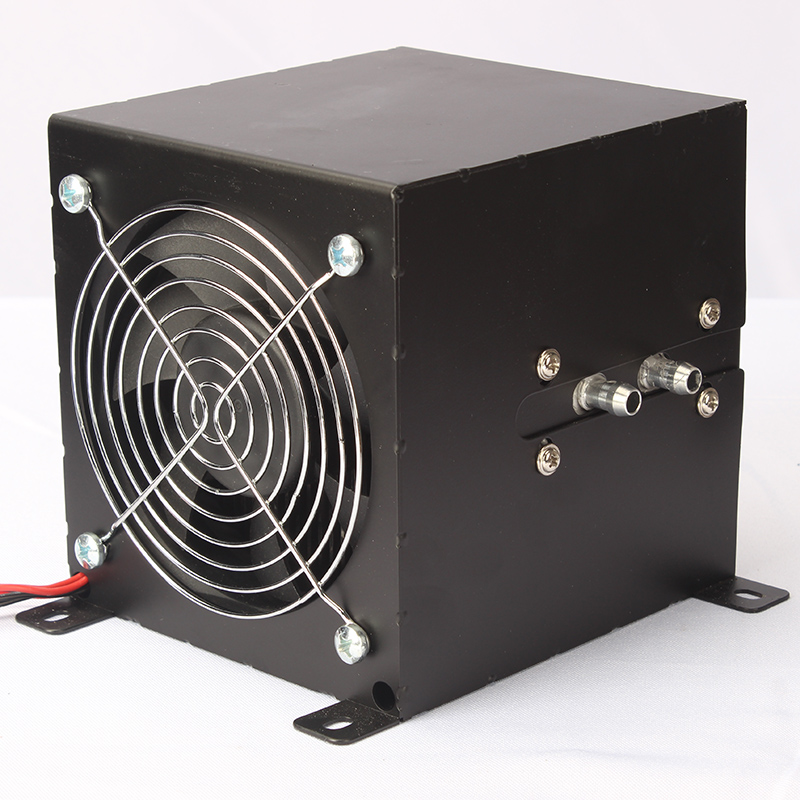

TEC Cooler We use the TEC cooling system in the water tank and the sapphire crystal in the handle, so you can use TEC for 24 hours work. The sapphire crystal cooling system is at 0-5°C, so that the treatment is always comfortable and does not harm the skin and sweat glands. No side effects |

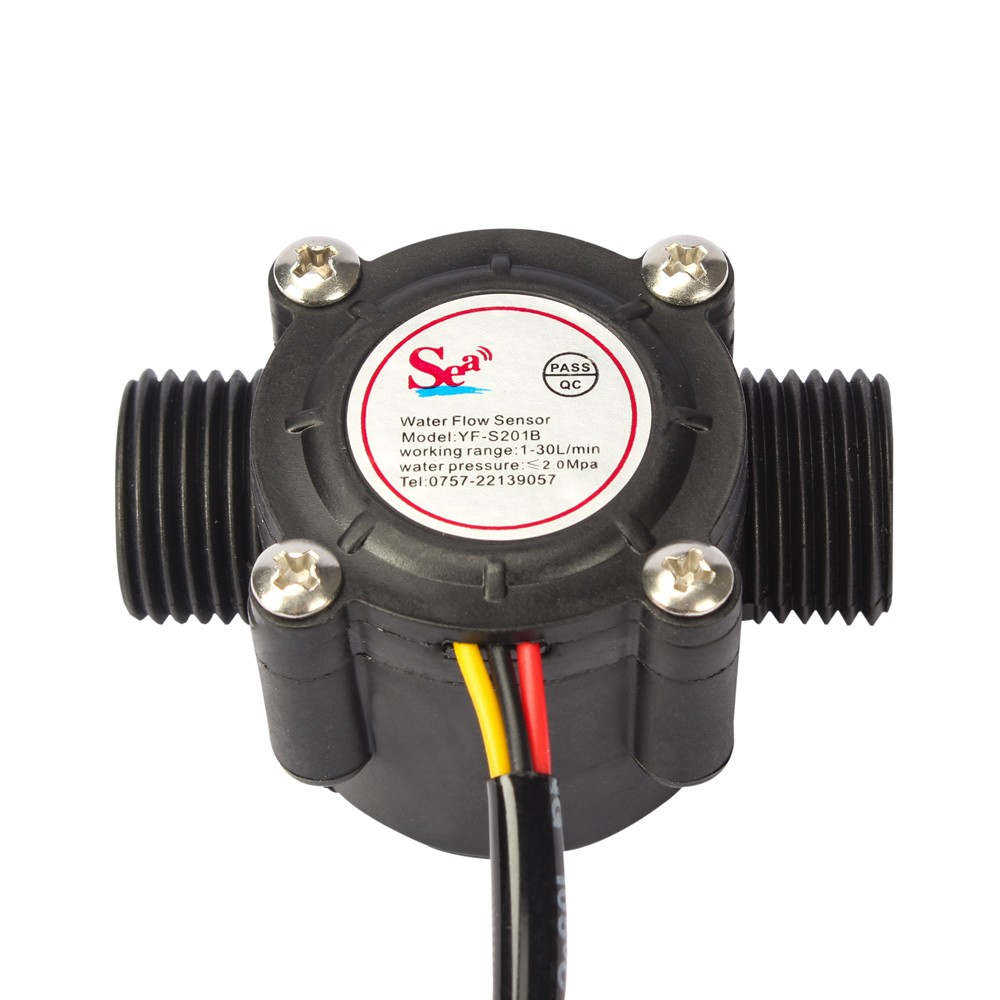

Water flow protector When the water flow is lower than 2.3L/min, in order to prevent the laser from overheating and damage, the machine will stop working
|

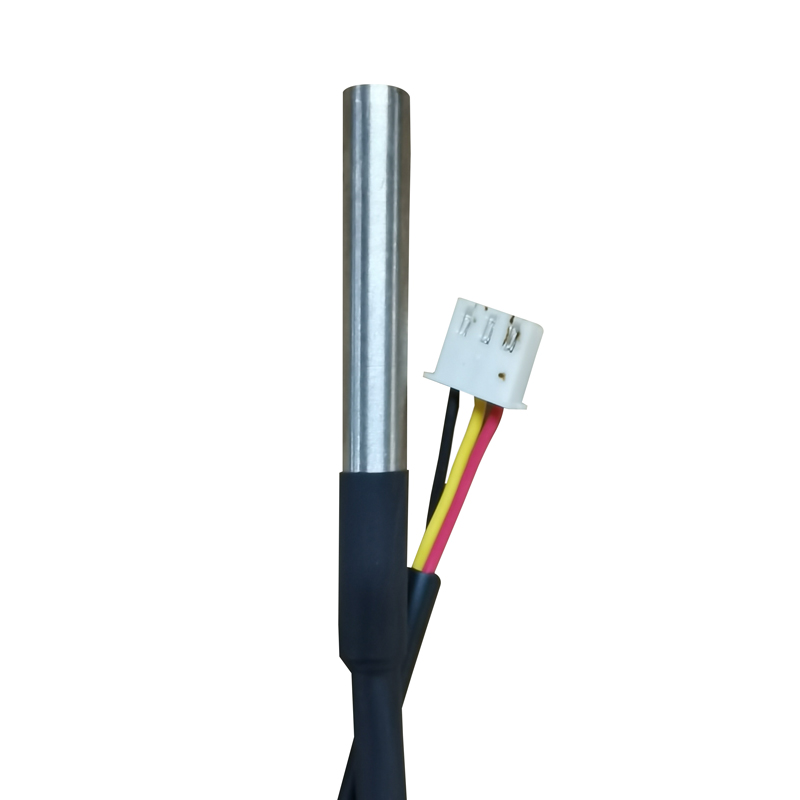

Water temperature protector When the water temperature of the machine rises to 40° due to an accident, the water temperature protection starts and the machine stops working
|
Treatment Effect

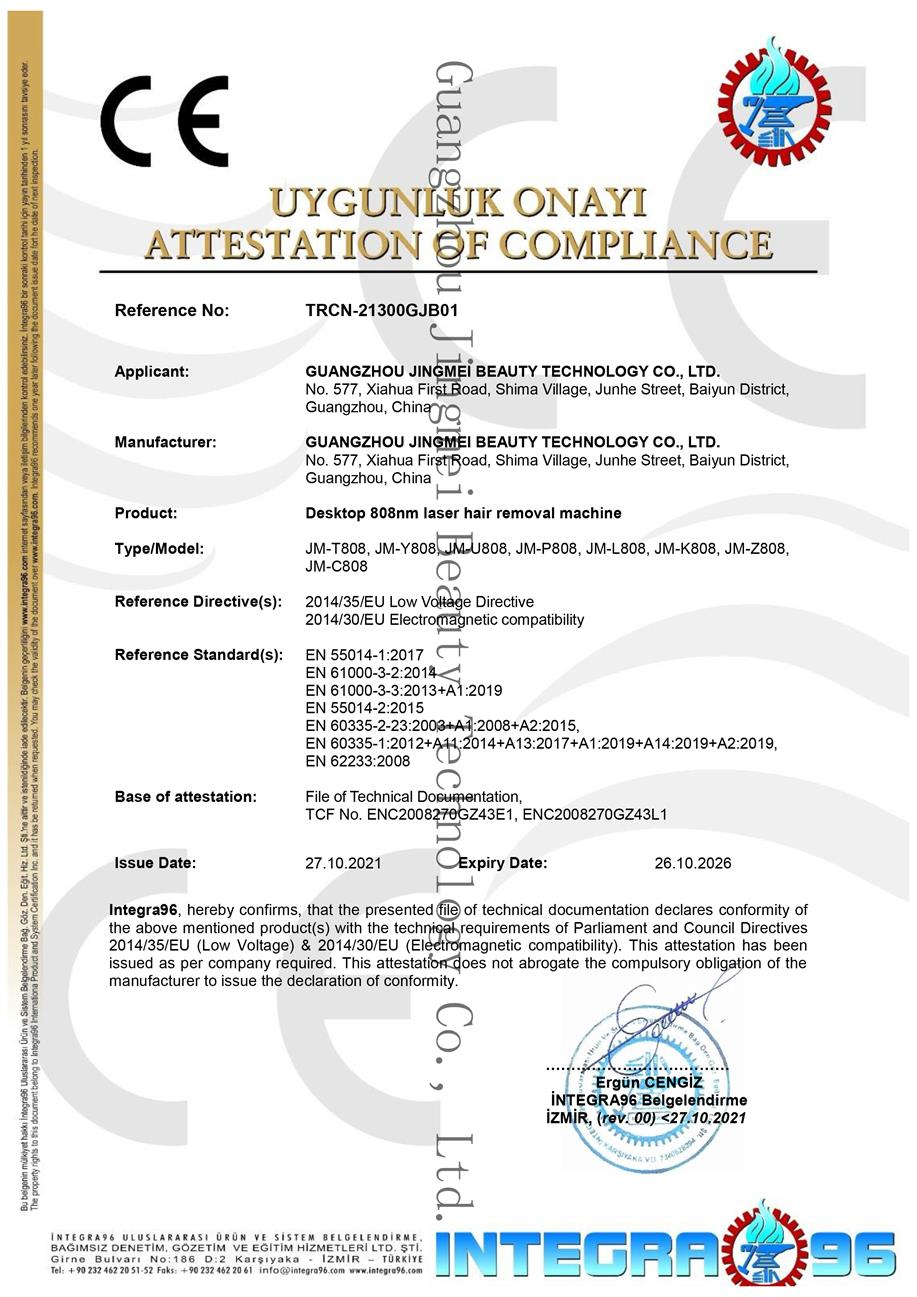

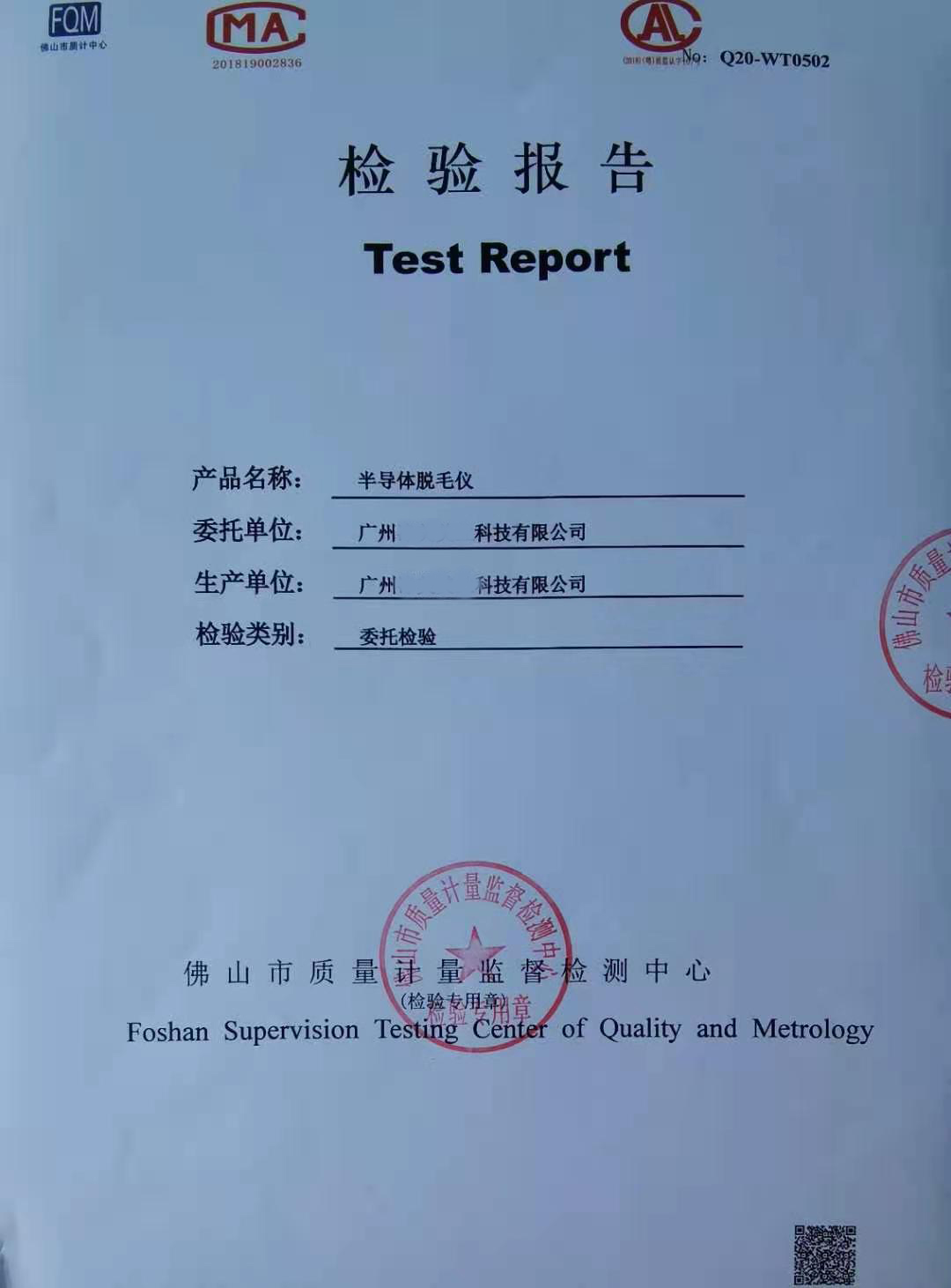

Certificates

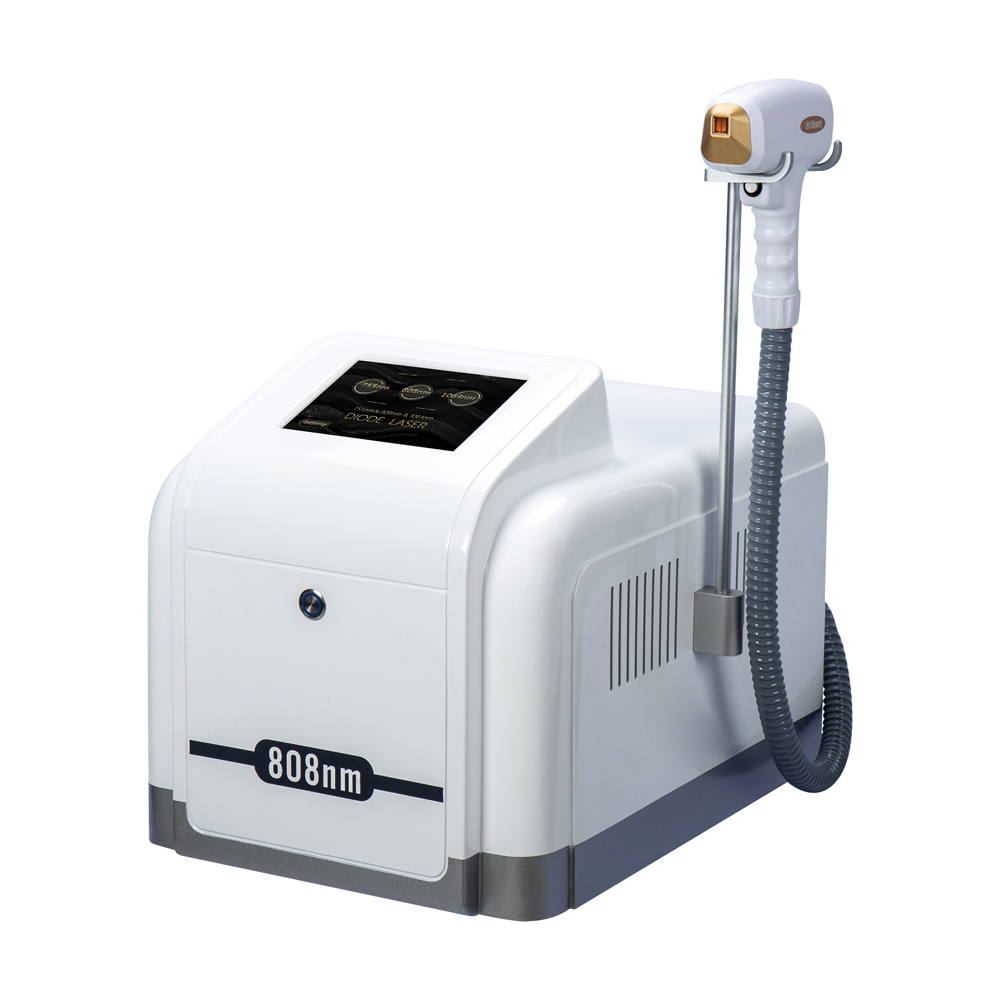

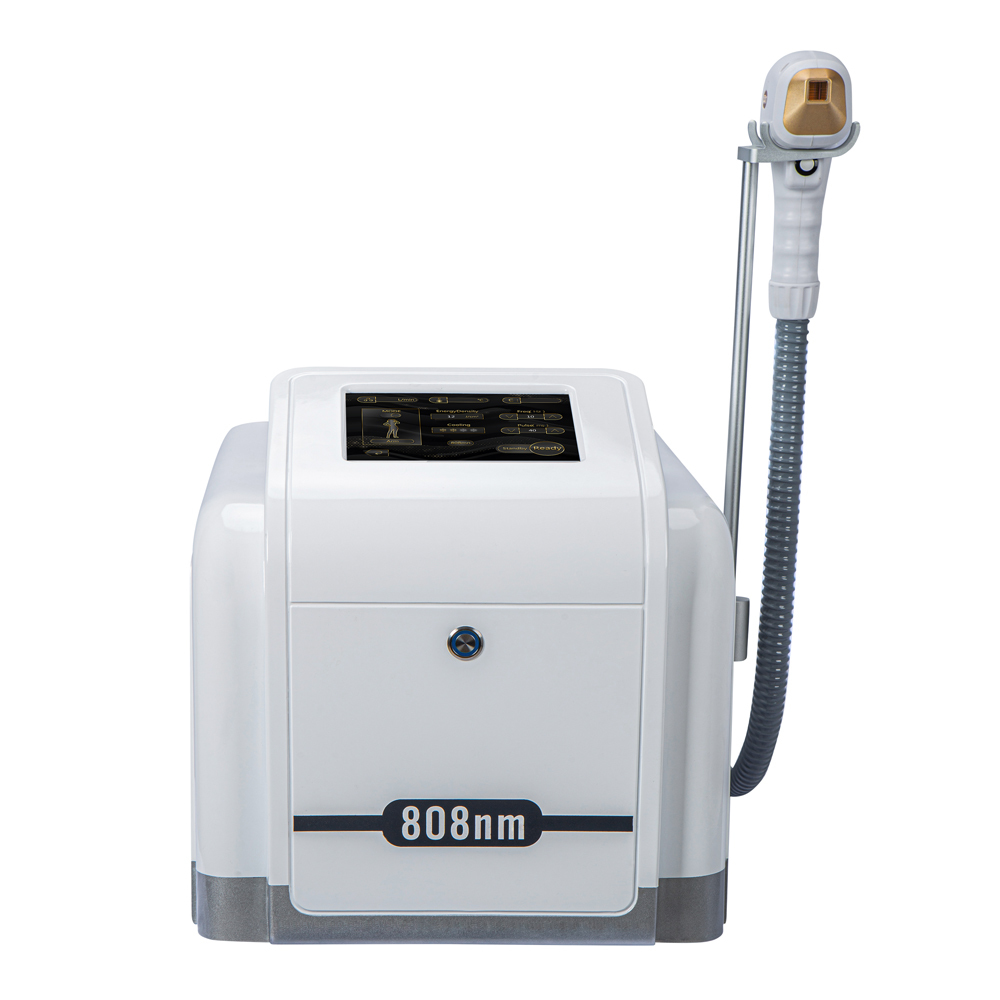

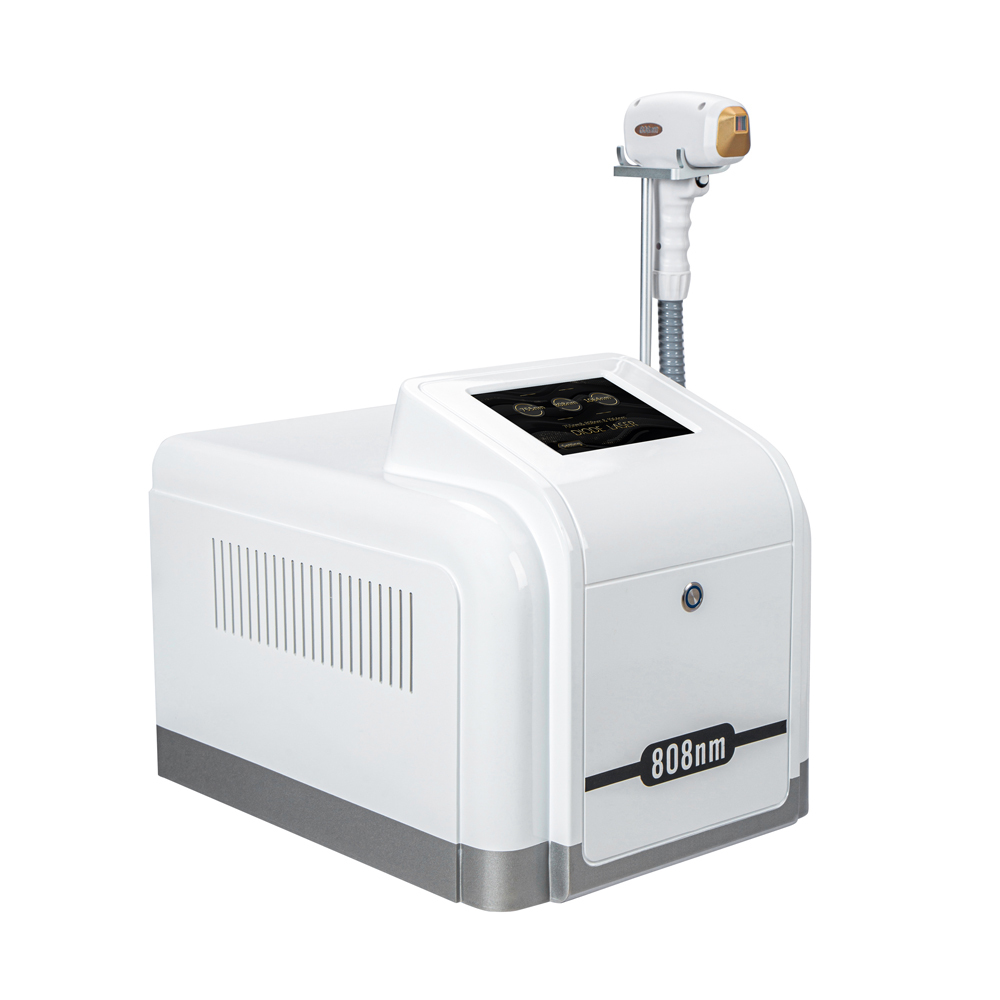

Product Parameters
Name | Portable 808nm | Water pump | 12v6A (5.0/L) (0.42mpa) |
Wavelength | 808nm/755nm+808nm+1064nm (optional) | Flow sensor | Minimum 2.3L/min flow requirement |
Working frequency | 1~10HZ (adjustable) | Filter | External 15μm filter (can be quickly removed and replaced) |
Energy density | 1~120J/cm² | Cooling system | 400w TEC |
Handle cooling | TEC+Sapphire cooling | Cooling fan | 12v silent fans×2 |
TEC cooling slice | 12v6A | Chassis material | ABS shell/metal shell |
Spot size | 12mm×12mm/12mm×24mm | Water tank volume | 3L~5L |
Laser power | 500w~1000w | Power supply voltage | 220v/110v 50~60hz |
Pulse width | 5ms~400ms | After-sales service | Online video technical support |
Output mode | Pulse output | Warranty | 1 years |
Operating language | Language can be customized | Packing size | 54cm×44cm×41cm |
Screen size | 8 inch LED touch screen | Total weight | 22KG |
Water temperature protection temperature | 5°~38° | / | / |
